Referencing Components
You can construct your forms in the Form Builder by referencing components. Components group together reusable form logic. You can mix and match components to create forms of arbitrary complexity.
Imagine building a form for use in HIV Testing. This form might require the following sections:
- A
Pre-clinic reviewsection - A
Lab ordersection - A
Lab resultssection - An
HIV statussection - A
Tuberculosis treatmentsection - A
Vitalssection
It is possible to encapsulate each of the above pieces into a component. You would then have, say, a Pre-Clinic Review component that handles pre-clinic review concerns. This component could have sections such as:
- A patient's current HIV status
- Whether a visit was scheduled or not
- Reasons for a visit
- The current visit type
- A patient's insurance information

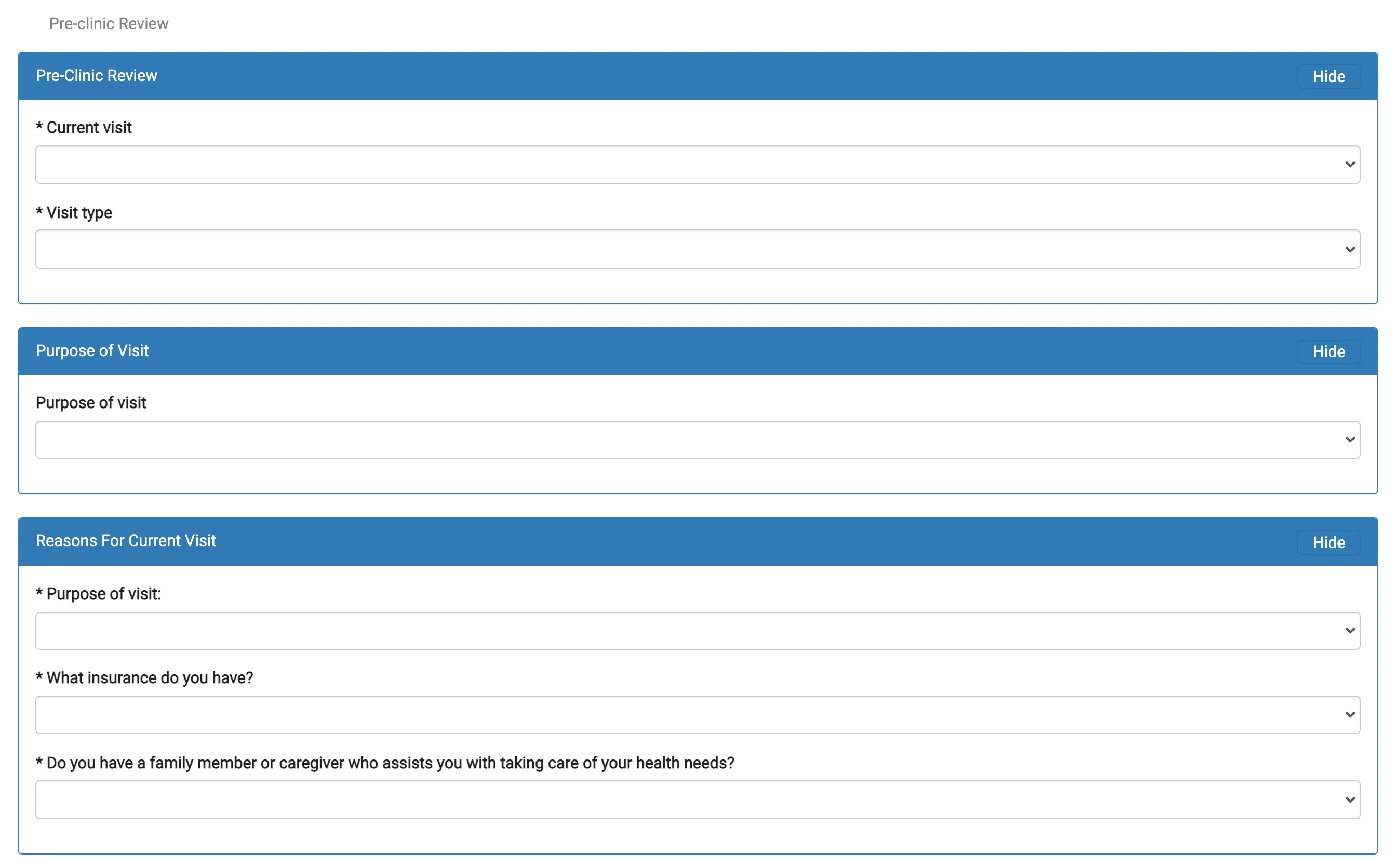

This component could look something like this:
If you then wished to build a Cervical Cancer screening visit form, you could reference this component and pick from it the sections you need. Let's build an example form that references the Pre-Clinic Review section from our component.
Example
Create a new Form
Click the Create New button to launch the Schema editor.
Reference the Component
Launch the Schema Builder by clicking the hamburger menu in the top-left corner of the page. Click Create a new page and enter Preclinical Review as the page label.
Click Reference Section and enter component_oncology-preclinic-review-v1.2 as the name of the component to reference.
Here's the component schema for reference:
{
"name": "component_oncology-preclinic-review-v1.2",
"uuid": "xxxx",
"processor": "EncounterFormProcessor",
"pages": [
{
"label": "Pre-clinic Review",
"sections": [
{
"label": "Pre-Clinic Review",
"isExpanded": "true",
"questions": [
{
"label": "Current visit",
"id": "visitType",
"required": "true",
"questionOptions": {
"rendering": "select",
"concept": "a89ff9a6-1350-11df-a1f1-0026b9348838",
"answers": [
{
"concept": "a89b6440-1350-11df-a1f1-0026b9348838",
"label": "Scheduled visit"
},
{
"concept": "a89ff816-1350-11df-a1f1-0026b9348838",
"label": "Unscheduled visit early"
},
{
"concept": "a89ff8de-1350-11df-a1f1-0026b9348838",
"label": "Unscheduled visit late"
}
]
},
"type": "obs",
"validators": []
},
{
"label": "If early or late unscheduled visit, what was the scheduled visit date?",
"id": "actualDate",
"type": "obs",
"required": {
"type": "conditionalRequired",
"referenceQuestionId": "visitType",
"referenceQuestionAnswers": [
"a89ff816-1350-11df-a1f1-0026b9348838",
"a89ff8de-1350-11df-a1f1-0026b9348838"
]
},
"questionOptions": {
"rendering": "date",
"concept": "dc1942b2-5e50-4adc-949d-ad6c905f054e"
},
"validators": [
{
"type": "date",
"allowFutureDates": "true"
},
{
"type": "js_expression",
"failsWhenExpression": "!isEmpty(visitType) && arrayContains(['a89ff816-1350-11df-a1f1-0026b9348838','a89ff8de-1350-11df-a1f1-0026b9348838'], visitType) && isEmpty(myValue)",
"message": "Patient visit marked as unscheduled. Please provide the scheduled date."
}
],
"hide": {
"hideWhenExpression": "!arrayContains(['a89ff816-1350-11df-a1f1-0026b9348838','a89ff8de-1350-11df-a1f1-0026b9348838'], visitType)"
}
},
{
"label": "Visit type",
"id": "typeOfVisit",
"required": "true",
"questionOptions": {
"rendering": "select",
"concept": "a89ff5c8-1350-11df-a1f1-0026b9348838",
"answers": [
{
"concept": "ab202fa8-ad2b-487d-83f8-991f8fa109a1",
"label": "Initial screening"
},
{
"concept": "a89526f2-1350-11df-a1f1-0026b9348838",
"label": "Routine screening"
},
{
"concept": "19a7233b-2db1-4d7b-a2fb-4473e6b58f9d",
"label": "Post-Treatment screening"
},
{
"concept": "a89adc46-1350-11df-a1f1-0026b9348838",
"label": "Treatment visit"
},
{
"concept": "3a60fe6f-a116-41ce-9daf-1340085bc02d",
"label": "Complications"
}
]
},
"type": "obs",
"validators": []
}
]
},
{
"label": "Purpose of Visit",
"isExpanded": "true",
"questions": [
{
"type": "obsGroup",
"label": "Reasons for current visit, detailed",
"id": "visitdetailed",
"questionOptions": {
"concept": "6e78c98e-554d-498e-b8da-b6bf5a6532bb",
"rendering": "group"
},
"questions": [
{
"label": "Purpose of visit",
"id": "purpvist",
"questionOptions": {
"rendering": "select",
"concept": "a89ff5c8-1350-11df-a1f1-0026b9348838",
"answers": [
{
"concept": "5d0f859f-b08a-4bea-8ab3-4d108cb72d69",
"label": "Annual screening"
},
{
"concept": "a89ac184-1350-11df-a1f1-0026b9348838",
"label": "New complaints"
},
{
"concept": "a89b6440-1350-11df-a1f1-0026b9348838",
"label": "Recall/scheduled visit"
},
{
"concept": "a8a4812e-1350-11df-a1f1-0026b9348838",
"label": "Follow up"
},
{
"concept": "a8aaf3e2-1350-11df-a1f1-0026b9348838",
"label": "Other"
}
]
},
"type": "obs",
"validators": []
},
{
"label": "Please specify any other purpose of this visit that is not listed above",
"type": "obs",
"questionOptions": {
"concept": "a8a06fc6-1350-11df-a1f1-0026b9348838",
"rendering": "text"
},
"validators": [],
"hide": {
"hideWhenExpression": "purpvist !== 'a8aaf3e2-1350-11df-a1f1-0026b9348838'"
}
},
{
"label": "What complaints are you presenting with?",
"id": "complaintsPresentingWith",
"type": "obs",
"questionOptions": {
"rendering": "multiCheckbox",
"concept": "a8a6ddb6-1350-11df-a1f1-0026b9348838",
"answers": [
{
"concept": "5c5e5e89-8e4d-451d-9471-fbe359d40b00",
"label": "Axillary swelling"
},
{
"concept": "a8964726-1350-11df-a1f1-0026b9348838",
"label": "Breast mass"
},
{
"concept": "c7356bfe-e9a8-422b-9a6a-6e42490d308e",
"label": "Breast pain"
},
{
"concept": "a895776a-1350-11df-a1f1-0026b9348838",
"label": "Breast rash"
},
{
"concept": "4dd41494-15c7-4d93-88c1-1dab8c7bc2c7",
"label": "Nipple discharge"
},
{
"concept": "a8aaf3e2-1350-11df-a1f1-0026b9348838",
"label": "Other (non-coded)"
}
]
},
"validators": [],
"hide": {
"hideWhenExpression": "purpvist !== 'a89ac184-1350-11df-a1f1-0026b9348838'"
}
},
{
"label": "What other complaints are you presenting with that are not listed above?",
"id": "otherComplaints",
"type": "obs",
"questionOptions": {
"concept": "a8a06fc6-1350-11df-a1f1-0026b9348838",
"rendering": "text"
},
"validators": [],
"hide": {
"hideWhenExpression": "purpvist !== 'a89ac184-1350-11df-a1f1-0026b9348838' || isEmpty(complaintsPresentingWith) || !arrayContains(complaintsPresentingWith, 'a8aaf3e2-1350-11df-a1f1-0026b9348838')"
}
}
]
}
]
},
{
"label": "Reasons For Current Visit",
"isExpanded": "true",
"questions": [
{
"label": "Purpose of visit:",
"id": "purpvists",
"required": "true",
"questionOptions": {
"rendering": "select",
"concept": "a89ff5c8-1350-11df-a1f1-0026b9348838",
"answers": [
{
"concept": "ab202fa8-ad2b-487d-83f8-991f8fa109a1",
"label": "Initial visit"
},
{
"concept": "9593a728-ff99-41ad-9d87-db3d083daa90",
"label": "Second opinion"
}
]
},
"type": "obs",
"validators": []
},
{
"label": "What insurance do you have?",
"id": "insuType",
"required": "true",
"questionOptions": {
"rendering": "select",
"concept": "a8b02524-1350-11df-a1f1-0026b9348838",
"answers": [
{
"concept": "a899e0ac-1350-11df-a1f1-0026b9348838",
"label": "None"
},
{
"concept": "8b715fed-97f6-4e38-8f6a-c167a42f8923",
"label": "NHIF"
},
{
"concept": "0bfb0150-949b-4625-98b8-b9d8275bcf44",
"label": "Employer based insurance"
},
{
"concept": "6fac74c3-fe25-4170-92a4-3ecb8859152e",
"label": "Private insurance"
},
{
"concept": "a8aaf3e2-1350-11df-a1f1-0026b9348838",
"label": "Other"
}
]
},
"type": "obs",
"validators": []
},
{
"label": "Do you have a family member or caregiver who assists you with taking care of your health needs?",
"id": "caregiver",
"required": "true",
"questionOptions": {
"rendering": "select",
"concept": "25d3dc5a-5ea6-4361-8929-bf1b57826712",
"answers": [
{
"concept": "a899b35c-1350-11df-a1f1-0026b9348838",
"label": "Yes"
},
{
"concept": "a899b42e-1350-11df-a1f1-0026b9348838",
"label": "No"
}
]
},
"type": "obs",
"validators": []
}
]
}
]
}
]

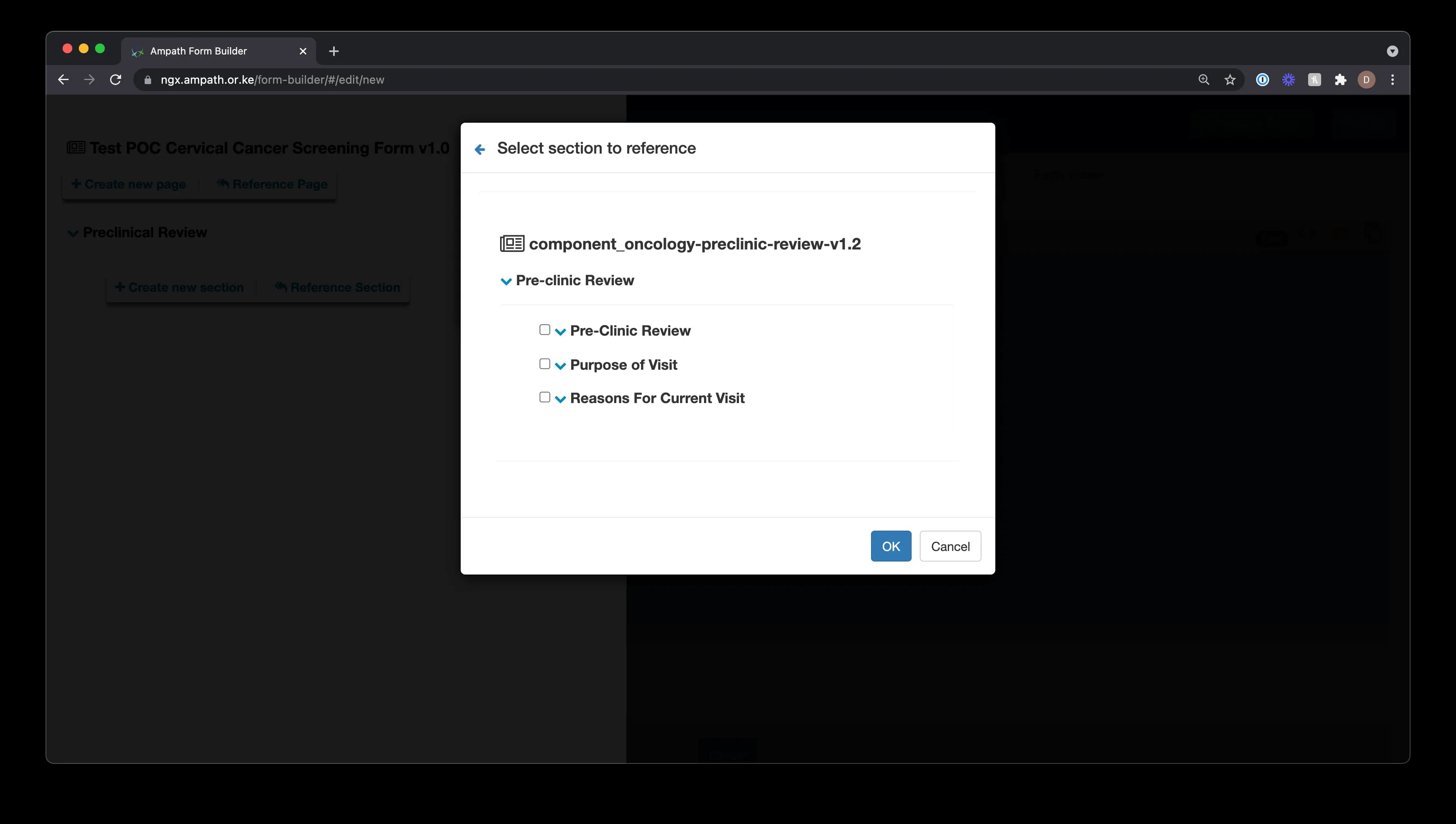

}A modal should appear asking you to choose the sections you want to reference. We will select two sections:
Pre-Clinic ReviewReasons for Current Visit
Make sure to tick the boxes next to those labels.
Further, we want to limit which questions we want to show from those sections. Expand the Reasons for Current Visit question and remove the last two questions labelled:
What insurance do you have?Do you have a family member or caregiver who assists you with taking care of your health needs?

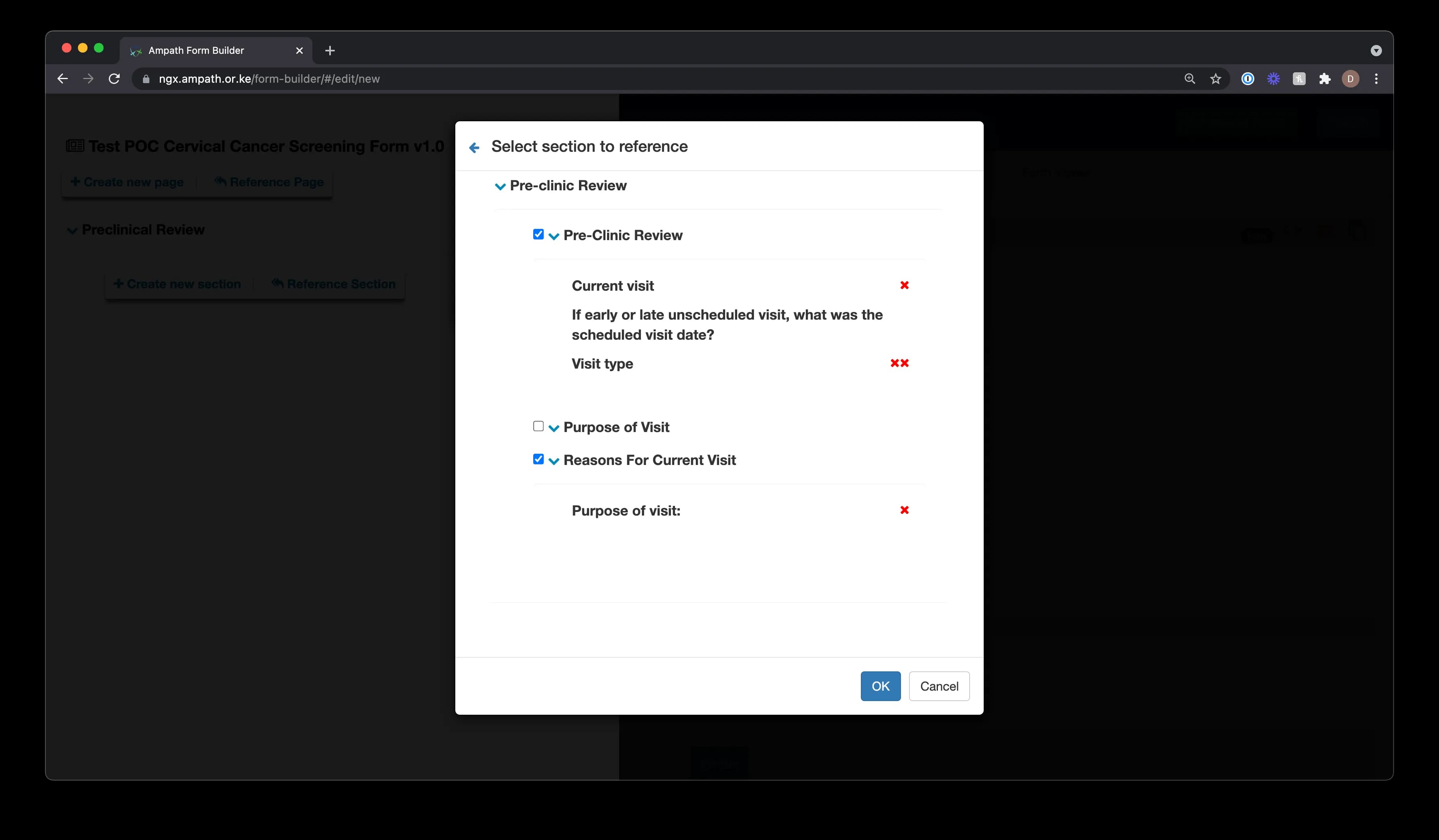

By this point, you should have the following options in your section reference configuration:

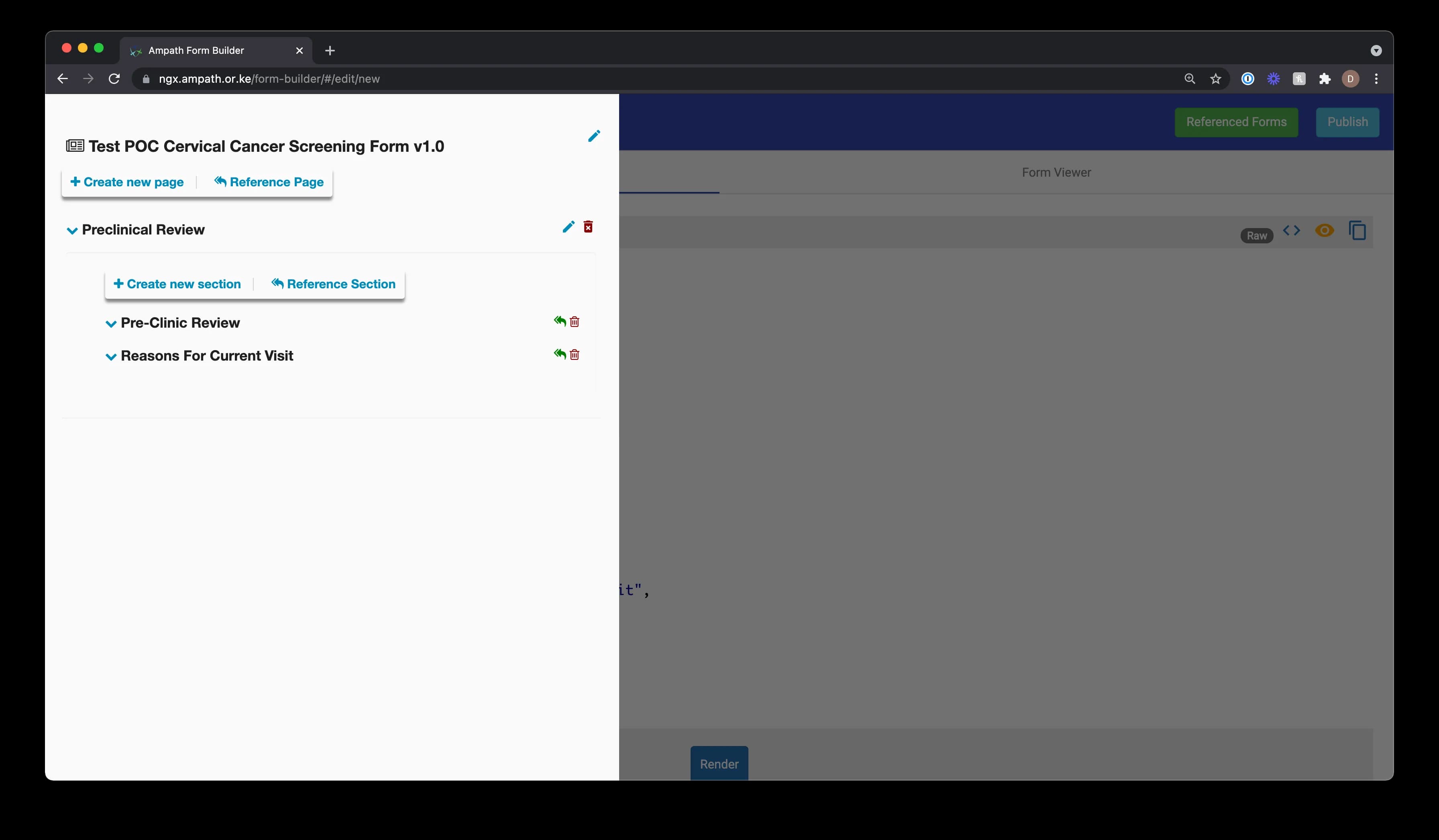

The Schema Builder panel should show the following layout:

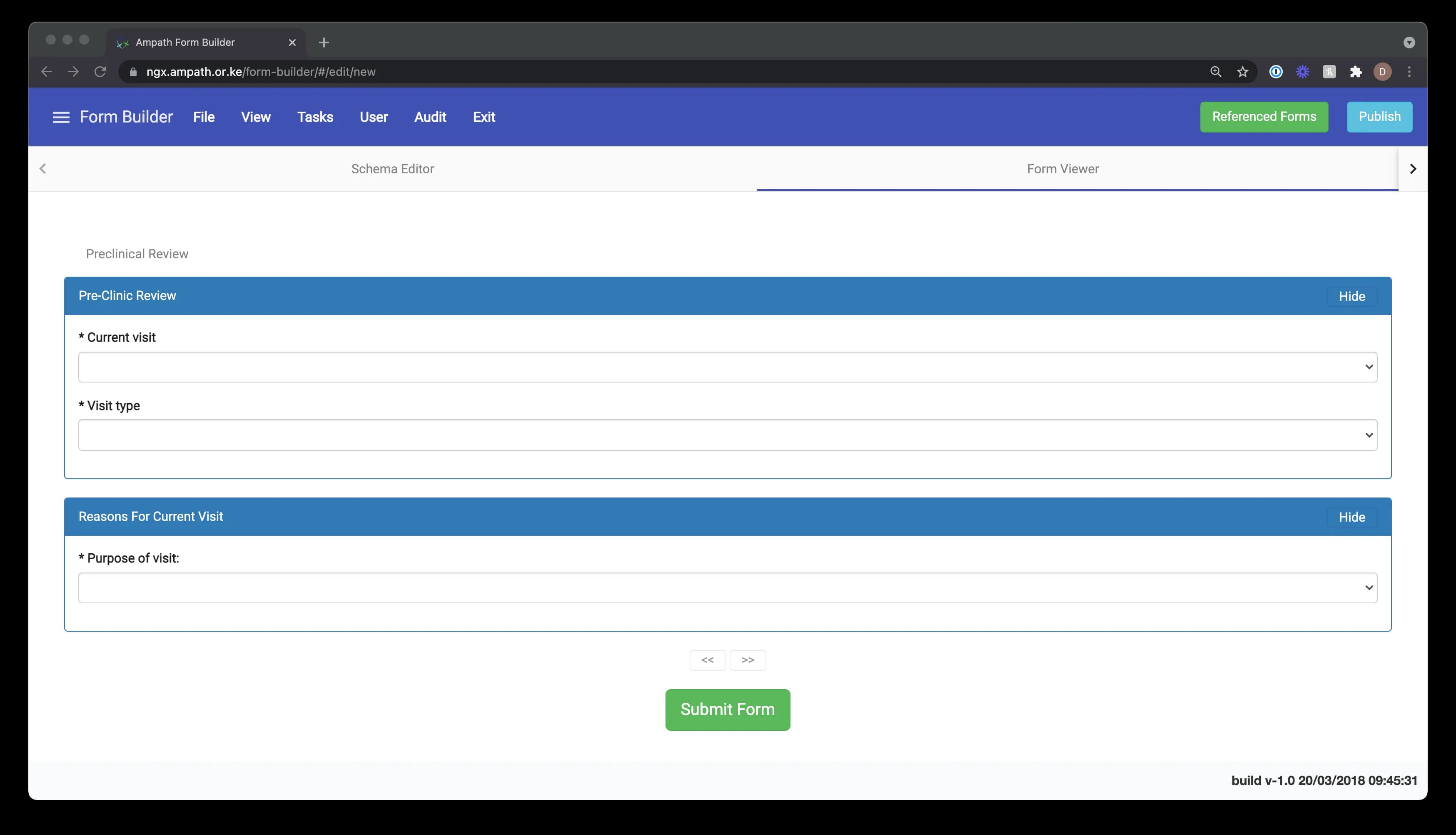

Exit the Schema Builder by clicking anywhere on the page. Click the Render form button to compile the form. Once you see the Schema updated alert, click the Form Viewer tab to see the visual representation of our form. You should see the following:
You can follow this approach to reference as many components as you wish.
Once done, click File and then Save to Server to save your form.
As you've observed, components provide a powerful mechanism for encapsulating shared form logic into reusable chunks.
